Lid-Lock Loading and Operation Steps

The steps below highlight the operation of our Lid-Lock system. Lid-Lock is specifically designed to keep the flushable wipe container captive at the front of the dispenser at all times, regardless of how many wipes are left in the package. This design improves wipe dispensing efficiency for the user by only requiring one hand to operate and pull wipes from the dispenser. This design also improves overall hygiene by reducing the need to pick up the package every time you use flushable wipes. The Dude Wipe compatible dispenser is shown in the illustration below, but the Kirkland model operates in the same way.

White wall-mounted WipeWorks bathroom dispenser for flushable wipes and toilet paper. demonstrating wipe refilling.

Step 1

Remove Toilet Paper Holder

This part also doubles as the access door for the inside of the wipes holder. Door lifts up 3/4 of an inch (18mm) and pulls away from the box reveling the inside of the wipe container

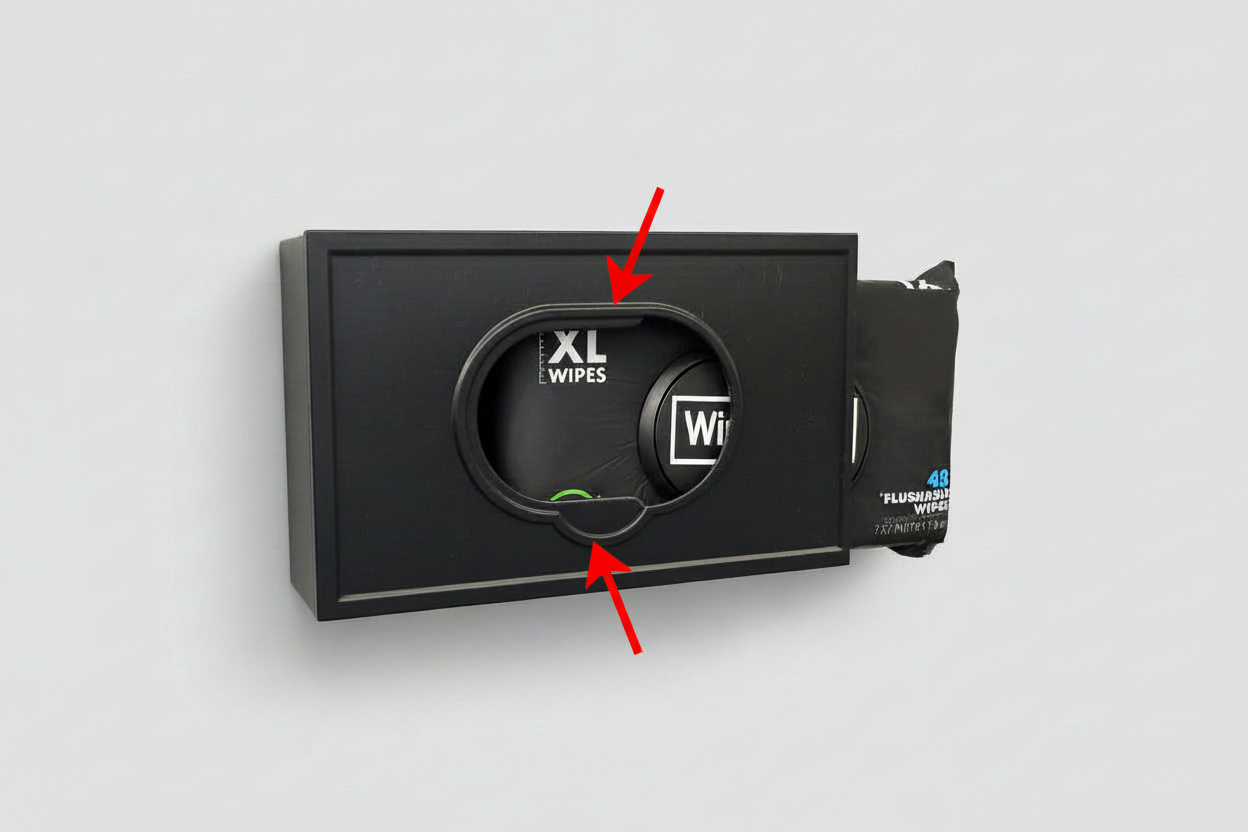

Lid-lock operation, step one.

Step 2

Install Wipes

Slide new package of wipes towards opening. The plastic lid on the wipes package will slide over the "C" shaped tab on the box (see red arrows for reference).

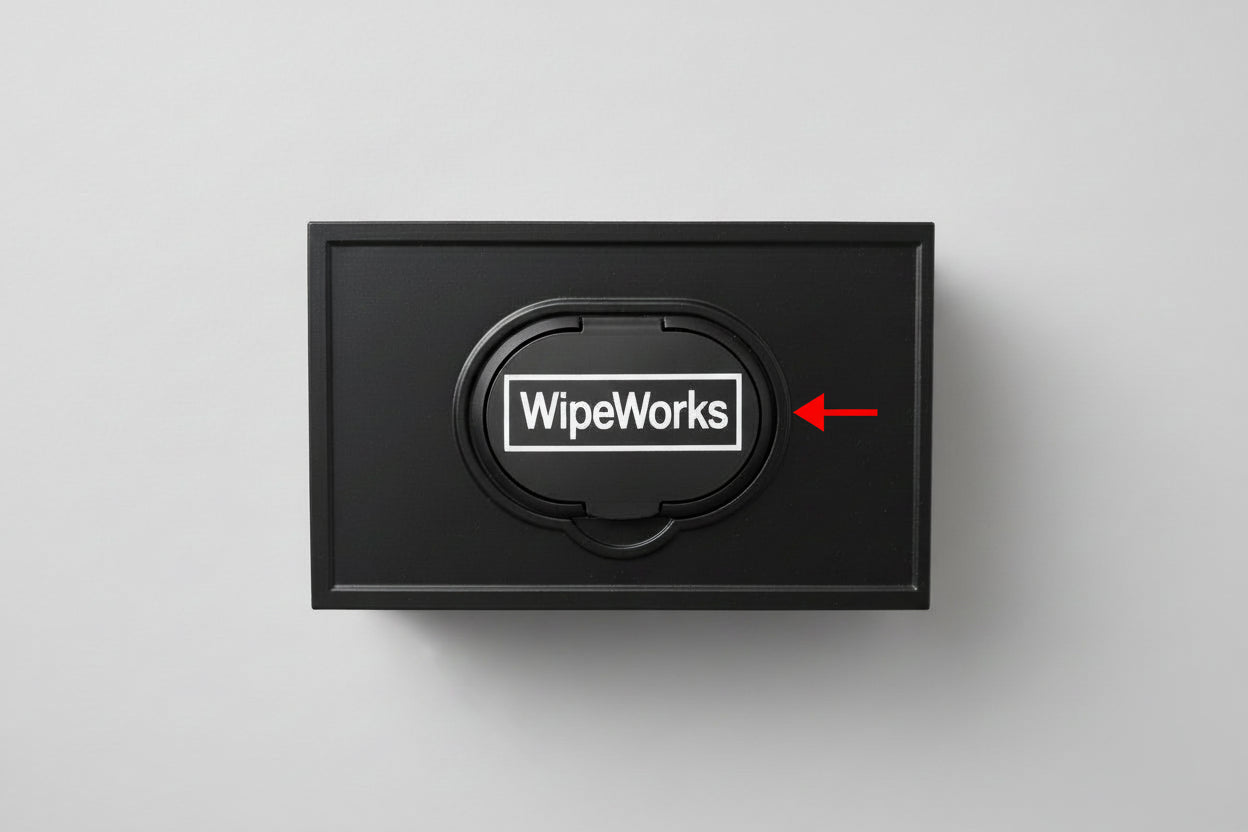

Black wet wipes dispenser demonstrating Lid-Lock operation.

Step 2

Lift wipes lid...

Over the plastic "C" shaped tab while pushing the package into the holder with the opposite hand. Make sure the top and the bottom of the wipes lid is on top of the "C" shaped clip.

Step 3

Lock the Lid

Push package until the opposite side of the lid (red arrow) pops through the opening. At this point, make any small adjustment to line up the lid perfectly in the opening as shown

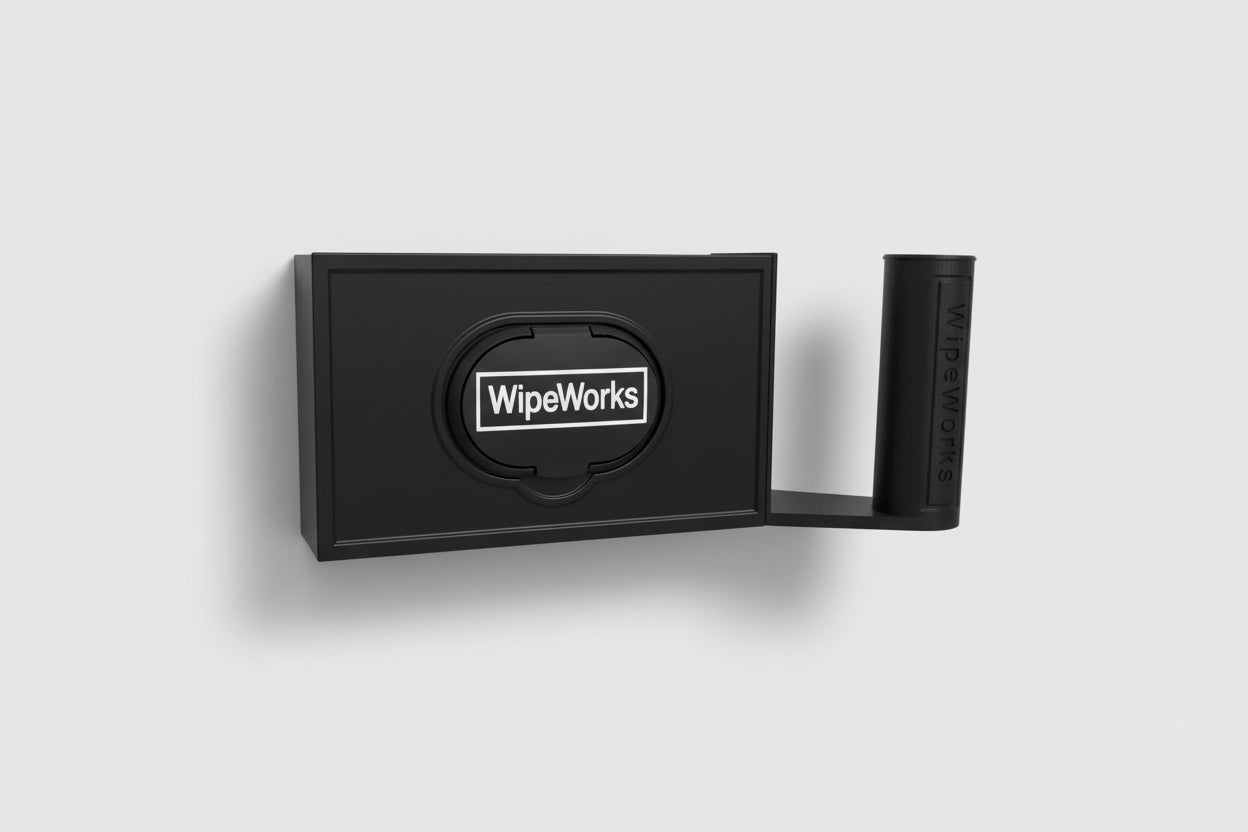

Black wall-mounted WipeWorks bathroom dispenser for flushable wipes and toilet paper

Step 4

Reinstall Toilet Paper Holder

Reinstallation is as simple as reversing step 1.
